2 Position Small Key Switches (Stamped Keys)
| Part Number | Switch Type | Bushing Type | Terminal Type | Connector Type PE # | Circuits Made | Notes | ||
| Thread | Length | Pos. 1 | Pos. 2 | |||||
| 431A | Magneto | 5/8-32 | 0.406″ | PE(2) | 2962967 | M+G | None | – |
| A431A | Magneto | 5/8-32 | 0.406″ | PE(1) | PE 56 | M+G | None | 1 |
| B431A | Magneto | 5/8-32 | 0.406″ | LUG(1) | LUG(8-32) | M+G | None | 1 |
| C431A | Magneto | 5/8-32 | 0.406″ | PE(2) | 6294828 | M+G | None | 1 |
| D431A | Magneto | 5/8-32 | 0.406″ | PE(2) | 2962967 | M+G | None | – |
| E431A | Magneto | 5/8-32 | 0.406″ | PE(1) | PE 56 | M+G | None | 1 |
| F431A | Magneto | 5/8-32 | 0.406″ | LUG(1) | LUG(8-32) | M+G | None | 1 |
| H431A | Magneto | 5/8-32 | 0.406″ | PE(2) | LUG(8-32) | M+G | None | – |
| J431A | Magneto | 5/8-32 | 0.406″ | 45PE(2) | 2962967 | M+G | None | – |
| L431A | Magneto | 5/8-32 | 0.406″ | PE(2) | 2962967 | M+G | None | 3 |
| P431A | Starting | 5/8-32 | 0.406″ | PE(2) | 2962967 | None | B+S | 2 |
| 2A431A | Bat. Ing. | 5/8-32 | 0.406″ | PE(2) | 2962967 | None | B+S | – |
**Notes:
1. Case is grounded.
2. Spring return to position “1”.
3. Drain holes in two places.
I
I

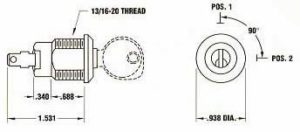

2 Position Small Key Switches (Milled Keys)
| Part Number | Switch Type | Bushing Type | Terminal Type | Connector Type PE # | Circuits Made | ||
| Thread | Length | Pos. 1 | Pos. 2 | ||||
| 2E716A | Battery Ignition | 13/16-20 | 0.690″ | PE(2) | PE 56 | None | X+Y |
| 2F716A | Battery Ignition | 13/16-20 | 0.690″ | LUG(2) | LUG(6-32) | None | X+Y |
| 2B716A | Magneto | 13/16-20 | 0.690″ | PE(1) | PE 56 | X+G | None |
I
I
2 Position Large Key Switches
| Part Number | Switch Type | Bushing Type | Terminal Type | Connector Type PE # | Circuits Made | Notes | ||
| Thread | Length | Pos. 1 | Pos. 2 | |||||
| 462A | Starting | 5/8-32 | 0.406″ | PE(2) | PE 56 | None | B+S | 1 |
| A462A | Bat. Ign. | 13/16-20 | 0.690″ | LUG(2) | LUG(10-32) | None | B+I | – |
| G462A | Bat. Ign. | 9/16-24 | 0.310″ | LUG(2) | LUG(8-32) | None | X+Y | – |
| H462A | Starting | 5/8-32 | 0.406″ | PE(2) | 6294493 | None | B+S | 1 |
| K462A | Magneto | 13/16-20 | 0.690″ | PE(2) | 6294493 | G+M | None | 2 |
**Notes:
1. Spring return to position “1”.
2. Five key combinations are available for the K462A series.
I
I
3 Position Key Switches (Stamped Keys)
| Part Number | Switch Type | Bushing Type | Terminal Type | Connector Type PE # | Circuits Made | Notes | |||
| Thread | Length | Pos. 1 | Pos. 2 | Pos. 3 | |||||
| 451A | Bat. Ign. | 9/16-24 | 0.310″ | LUG(3) | LUG(8-32) | None | B+I | B+I+S | 2 |
| B451A | Bat. Ign. | 9/16-24 | 0.310″ | PE(3) | 2962510 | None | B+I | B+I+S | 2 |
| C451A | Bat. Ign. | 9/16-24 | 0.310″ | PE(5) | PE 56 | None | B+I | B+I+S | 2,9 |
| F451A | Magneto | 9/16-24 | 0.310″ | LUG(2) | LUG(8-32) | M+G | None | S+G | 1,2 |
| G451A | Special | 9/16-24 | 0.310″ | PE(4) | 2962510 | D+G/None | None/B+C | None / B+C+S | 1,2,9 |
| K451A | Magneto | 5/8-32 | 0.406″ | LUG(3) | LUG(8-32) | M+G | None | B+S | 1,2 |
| N451A | Bat. Ign. | 9/16-24 | 0.310″ | LUG(3) | LUG(8-32) | None | B+I | B+I+S | 2 |
| T451A | Magneto | 5/8-32 | 0.406″ | LUG(4) | LUG(8-32) | M+A | None | B+S | 2 |
| 463A | Bat. Ign. | 9/16-24 | 0.310″ | LUG(3) | LUG(10-32) | None | B+I | B+I+S | 2 |
| D463A | Magneto | 9/16-24 | 0.310″ | PE(5) | 2973422 | G+M+A | B+A+R | B+S | 1,2 |
| E463A | Bat. Ign. | 9/16-24 | 0.310″ | PE(5) | 2973422 | None | B+A/X+Y | B+S/X+Y | 2 |
| G463A | Magneto | 5/8-32 | 0.406″ | PE(6) | 2973422 | G+M+A | B+A+R | B+S | 1,2 |
| J463A | Bat. Ign. | 9/16-24 | 0.310″ | PE(5) | 2973422 | None | B+R+I+A | B+R+I+S | 2 |
| K463A | Magneto | 9/16-24 | 0.310″ | PE(3) | PE 56 | M+G | None | B+S | 1,2 |
| L463A | Magneto | 5/8-32 | 0.406″ | PE(5) | 2973422 | G+M | B+L | B+S | 2 |
| M463A | Magneto | 5/8-32 | 0.406″ | LUG(4) | LUG(8-32 &10-32) | M+G | B+A | B+S | 1,2 |
| P463A | Magneto | 5/8-32 | 0.406″ | L(2) PE(3) |
LUG(10-32) PE 56 |
G+M+A | B+A+R | B+S | 2 |
| R463A | Magneto | 9/16-24 | 0.310″ | LUG(3) | LUG(8-32) | M+G | None | B+S | 1,2 |
| S463A | Magneto | 5/8-32 | 0.406″ | L(2) PE(1) |
LUG(10-32) PE 56 |
M+G | None | B+S | 1,2 |
| U463A | Bat. Ign. | 9/16-24 | 0.310″ | PE(5) | 2973422 | None | B+I+A/None | B+I+S/X+G | 1,2 |
| V463A | Magneto | 5/8-32 | 0.406″ | PE(3) | PE 56 | M+G | None | B+S | 1,2 |
| W463A | Magneto | 5/8-32 | 0.406″ | PE(5) | 2973422 | M+G | B+L | B+S | 1,2 |
| Y463A | Magneto | 5/8-32 | 0.406″ | L(2) PE(2) |
LUG(10-32) PE 56 |
M+G | None | B+S | 1,2 |
| Z463A | Diesel | 9/16-24 | 0.310″ | LUG(4) | LUG(8-32 &10-32) | None | B+I+A | B+I+H | 2,3 |
| 3B463A | Bat. Ign. | 5/8-32 | 0.406″ | PE(5) | 2973422 | None | B+R+I+A | B+R+I+S | 2 |
| 3C463A | Magneto | 5/8-32 | 0.406″ | L(2) PE(4) |
LUG(10-32) PE 56 |
G+M+A | B+A+R | B+S | 1,2 |
| 3E463A | Special | 9/16-24 | 0.310″ | LUG(5) | LUG(8-32) | D+G/None | D+O/B+C | None/B+C+S | 1,2,6 |
| 3G463A | Magneto | 5/8-32 | 0.406″ | PE(4) | 2962510 | G+M | None | B+S | 1,2 |
| 3H463A | Magneto | 5/8-32 | 0.406″ | PE(5) | 2973422 | G+M | B+L | B+L+S | 1,2 |
| 3J463A | Bat. Ign. | 5/8-32 | 0.406″ | PE(4) | 2973422 | None | B+I+A | B+I+S | 2 |
| 3K463A | Diesel | 9/16-24 | 0.310″ | LUG(4) | LUG(8-32 & 10-32) | None | B+I+A | B+I+H | 2 |
| 3N463A | Bat. Ign. | 9/16-24 | 0.310″ | PE(6) | 2973422 | None | B+I+A/X+Y | B+I+S | 2 |
| 3S463A | Magneto | 9/16-24 | 0.310″ | PE(6) | 2973422 & 2962448 | None/M+G | B+A/None | B+A/S1+S2 | 2 |
| 3T463A | Diesel | 9/16-24 | 0.310″ | LUG(4) | LUG(8-32 & 10-32) | None | B+I+A | B+I+H | 2,8 |
| 3U463A | Special | 5/8-32 | 0.406″ | PE(5) | 2973422 | None | B+A/X+Y | B+S/X+Y | 2 |
| 3W463A | Magneto | 9/16-24 | 0.310″ | PE(6) | 2973422 | G+M+A | B+A+R | B+S | 1,2 |
| 3Y463A | Magneto | 5/8-32 | 0.406″ | PE(5) | 2973422 | G+M | B+L | B+L+S | 1,2 |
| 3Z463A | Magneto | 9/16-24 | 0.310″ | PE(5) | 2973422 | G+M | B+L | B+L+S | 1,2 |
| 4C463A | Magneto | 5/8-32 | 0.406″ | PE(3) | 2962510 | G+M | None | B+S | 1,2 |
| 4F463A | Magneto | 5/8-32 | 0.406″ | PE(6) | 2973422 & 2962448 | G+M+A | B+L+A | B+L+S | 1,2 |
| 4G463A | Magneto | 5/8-32 | 0.406″ | PE(5) | 2973422 | G+M | B+L | B+L+S | 1,2 |
| 4J463A | Magneto | 9/16-24 | 0.310″ | PE(6) | 2973422 | G+M+A | B+A+R | B+S | 1,2,4,6 |
| 4M463A | Bat. Ign. | 5/8-32 | 0.406″ | PE(6) | 2973422 | None | B+I+A/X+Y | B+I+S | 2 |
| 4N463A | Special | 9/16-24 | 0.310″ | LUG(5) | LUG(8-32) | D+G/None | D+O/B+C | None/B+C+S | 1,2,7 |
| 4P463A | Bat. Ign. | 9/16-24 | 0.310″ | PE(6) | 2973422 & 2962448 | None | B+I+A/X+Y | B+I+S | 2,7 |
| 4Q463A | Magneto | 5/8-32 | 0.406″ | PE(6) | 2973422 & 2962448 | G+M+A | B+L+A | B+L+S | 2 |
| 4S463A | Magneto | 5/8-32 | 0.406″ | PE(6) | 2973422 & 2962448 | G+M+A | B+L+A | B+L+S | 1,2,5 |
*** Notes:
1. Case is grounded.
2. Spring return from position “3” to position “2”.
3. 6 Amp circuit breaker.
4. All terminals except “ground” terminal are copper.
5. Terminals “B” and “A” are brass, tin plated.
6. Drain holes in two places.
7. Drain holes in three places.
8. 10 Amp circuit breaker.
9. Drain hole in one place.
I
I

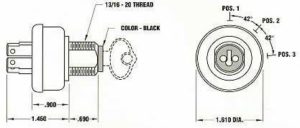

3 Position Key Switches (Milled Keys)
| Part Number | Switch Type | Bushing Type | Terminal Type | Connector Type PE # | Circuits Made | Notes | |||
| Thread | Length | Pos. 1 | Pos. 2 | Pos. 3 | |||||
| C457A | Bat. Ign. | 13/16-20 | 0.690″ | PE(3) | 2962510 | None | B+I | B+I+S | 2 |
| D457A | Magneto | 13/16-20 | 0.690″ | PE(3) | PE 56 | M+G | None | B+S | 1,2 |
| 1A463A | Magneto | 13/16-20 | 0.690″ | PE(5) | 2973422 | G+M | B+L | B+S | 2,4,5,7 |
| 3A463A | Special | 13/16-20 | 0.690″ | PE(5) | 2973422 | None | B+A/X+Y | B+S/X+Y | 2 |
| 3F463A | Bat. Ign. | 13/16-20 | 0.690″ | PE(5) | 2973422 | None | B+I+A/None | B+I+S/X+G | 2 |
| 3R463A | Bat. Ign. | 13/16-20 | 0.690″ | L(2)PE(2) | LUG(10-32) PE 56 |
None | X+Y | X+Y/B+S | 2 |
| 3V463A | Bat. Ign. | 13/16-20 | 0.690″ | PE(7) | 2973422, 2962965 & 2962793 | None | B+I+A/Y+Z | B+I+S/X+G | 1,2,3 |
| 4A463A | Magneto | 13/16-20 | 0.690″ | PE(6) | 2973422 & 2962448 | None/M+G | B+A/None | B+A/S1+S2 | 2,6,7 |
| 4D463A | Bat. Ign. | 13/16-20 | 0.690″ | PE(6) | 2973422 | None | B+I+A/X+Y | B+I+S/None | 2,7 |
| 4E463A | Special | 13/16-20 | 0.690″ | PE(5) | 2973422 | None | B+A/X+Y | B+S/X+Y | 2,7 |
| 4L463A | Magneto | 13/16-20 | 0.690″ | PE(6) | 2973422 & 2962448 | None/M+G | None/G+S | L+A/S+B | 2,6,7 |
Notes:
1. Case is grounded.
2. Spring return from position “3” to position “2”.
3. Terminals “A”, “B”, and “S” are copper.
4. Five key combinations are available for the 1A463 series.
5. Lockout feature: Switch must be turned to “OFF” position before re-entering “START” position.
6. Drain holes in two places.
7. Switch has a rubber boot which extends beyond bushing thread.
I
I
4 Position Key Switches (Stamped Keys)
| Part Number | Switch Type | Bushing Type | Terminal Type | Connector Type PE # | Circuits Made | Notes | ||||
| Thread | Length | Pos. 1 | Pos. 2 | Pos. 3 | Pos. 4 | |||||
| C464A | Magneto | 5/8-32 | 0.406″ | PE(5) | 2973422 | G+M | B+L | None | B+S | 1 |
| E464A | Magneto | 9/16-24 | 0.310″ | L(2) PE(3) |
2973385 & 2977253 | G+M+L | B+L+R | B+R | B+S | 1,2 |
| H464A | Bat. Ign. | 9/16-24 | 0.310″ | LUG(4) | LUG(8-32) | B+S0 | None | B+I | B+I+S | 1 |
| M464A | Bat. Ign. | 9/16-24 | 0.310″ | PE(4) | 2973422 | None | B+I+L | B+I | B+I+S | 1 |
| Q464A | Bat. Ign. | 5/8-32 | 0.406″ | L(2) PE(3) |
LUG(10-32) PE 56 |
None | B+I+R+L | B+I+R | B+I+S | 1 |
| R464A | Bat. Ign. | 5/8-32 | 0.406″ | PE(5) | 2973422 | None | B+I+R+L | B+I+R | B+I+S | 1 |
| S464A | Magneto | 5/8-32 | 0.406″ | PE(5) | 2973422 | G+M+L | B+R+L | B+R | B+S | 1,2 |
| T464A | Magneto | 5/8-32 | 0.406″ | PE(6) | 2973422 & 2962793 | N+G | X+L | None | B+S | 1 |
| W464A | Magneto | 5/8-32 | 0.406″ | PE(6) | 2973422 | G+M+L | B+R+L | B+R | B+S | 1,2 |
| Z464A | Magneto | 5/8-32 | 0.406″ | PE(5) | 2973422 | G+M+L | B+R+L | B+R | B+S | 1,2 |
| 3A464A | Magneto | 5/8-32 | 0.406″ | PE(5) | 2973422 | G+M+L | B+R+L | B+R | B+S+R | 1,2 |
| 3B464A | Magneto | 5/8-32 | 0.406″ | PE(7) | 2977233 & 2962448 | G+M+L/None | B+L/A+Y | B+L/None | B+L+S/None | 1,3 |
Notes:
1. Spring return from position “4” to position “3”.
2. Case is grounded.
3. Drain holes in one place.
I
I
4 Position Key Switches (Milled Keys)
| Part Number | Switch Type | Bushing Type | Terminal Type | Connector Type PE # | Circuits Made | Notes | ||||
| Thread | Length | Pos. 1 | Pos. 2 | Pos. 3 | Pos. 4 | |||||
| F464A | Bat. Ign. | 13/16-20 | 0.690″ | LUG(4) | LUG(8-32) | B+S0 | None | B+I | B+I+S | 1,3,4 |
| P464A | Magneto | 13/16-20 | 0.690″ | PE(7) | 2962960 & 2962448 | G+M+L | B+L/A+Y | None | B+S | 1,2 |
| Y464A | Bat. Ign. | 13/16-20 | 0.690″ | LUG(4) | LUG(8-32 & 10-32) | B+A | None | B+I+A | B+I+S | 1 |
| 1A464A | Magneto | 13/16-20 | 0.690″ | PE(5) | 2973422 | G+M | B+L | None | B+S | 1,2 |
Notes:
1. Spring return from position “4” to position “3”.
2. Switch has a rubber boot which extends beyond bushing thread.
3. Terminals are brass with tin plating.
4. Spring retun from position “1” to position “2”.
